Technical Implementation: Synchronizing RFID Middleware with Gravity Sensors for 2-Second Auto-Replenishment Triggers

The Evolution of Real-Time Inventory: Why 2 Seconds Matter

In the context of modern logistics, the 2-second threshold is the definitive benchmark for 'true' real-time visibility. It is the maximum allowable latency between a physical event—such as a product being lifted from a shelf—and the digital reconciliation in the ERP or Warehouse Management System (WMS). By synchronizing RFID middleware with gravity sensors within this narrow window, enterprises eliminate 'phantom stock' and 'ghost inventory,' ensuring that automated replenishment triggers occur with near-perfect accuracy even in high-velocity retail or industrial environments.

Why is the 2-second mark specifically targeted?

This window represents the 'Goldilocks Zone' of human-machine interaction. It is fast enough to update digital twins before a secondary transaction can occur, yet provides just enough time for middleware to filter out 'noise' or false positives from sensors, ensuring data integrity without sacrificing speed.

How does this prevent the 'Double-Pick' error?

In high-volume warehouses, two pickers might target the same item simultaneously. A 2-second sync ensures that the moment Picker A removes the item, the system flags it as 'unavailable' for Picker B, preventing fulfillment errors and shipping delays.

What role does sensor fusion play in this evolution?

By combining RFID (identity) with gravity sensors (mass/presence), the system cross-references what should be there with what is actually there. If a tag is missed but the weight changes, the system can still trigger an alert, providing a fail-safe that single-sensor systems lack.

Unique Insight: The 'Proprioception' of the Warehouse. In my 20 years in Silicon Valley, I have seen that the most successful automated systems treat the warehouse like a living organism. Achieving sub-2-second latency effectively gives the supply chain 'proprioception'—the ability to sense its own movement and position in space instantly. This isn't just about speed; it's about reducing the 'Cognitive Load' on your WMS. When the digital and physical worlds are in perfect sync, you no longer need complex buffer stock algorithms because your data is finally as fast as your operations.

Core Components of the Hybrid Sensing Architecture

The hybrid sensing architecture for 2-second auto-replenishment is a dual-layered system where Ultra-High Frequency (UHF) RFID provides the 'Identity' (the what) and Strain-Gauge Gravity Sensors provide the 'Context' (the how much). By fusing these two data streams at the edge, the system eliminates the traditional latency associated with cloud-only processing, allowing for near-instantaneous triggers when stock levels cross a critical weight threshold. This architecture relies on high-speed polling and precise ADC (Analog-to-Digital) conversion to ensure that data acquisition happens in milliseconds.

1. UHF RFID Reader Stack: Utilizing enterprise-grade readers capable of high-speed inventory cycles (up to 700 tags/second). The reader identifies which specific SKU is currently occupying a shelf slot.
2. Strain-Gauge Load Cells (High-Sensitivity): These sensors detect minute changes in physical pressure. For a 2-second trigger, we utilize four-point load cells to ensure center-of-gravity shifts do not cause false triggers.
3. Analog-to-Digital Conversion (ADC) Layer: A high-resolution 24-bit ADC is required to convert the low-voltage analog signals from the gravity sensors into actionable digital data for the middleware.
4. RFID Middleware Bridge: The logic layer that correlates an 'ID Read' event with a 'Weight Change' event within a shared 100ms window.

Expert Tip: The 'Interference Gap' Strategy. In high-density environments, the electromagnetic field of a powerful RFID reader can induce noise in unshielded strain-gauge wiring. To maintain 2-second accuracy, we recommend using differential signaling and twisted-pair shielded cabling for the load cells, alongside a software-based 'moving average' filter that ignores weight fluctuations during the exact millisecond of an RFID transmission burst.

Why can't we use RFID alone for replenishment?

RFID is excellent for identity but poor at determining exact quantity in bulk bins (e.g., loose screws or liquids) and suffers from signal shielding issues. Gravity sensors provide the absolute quantity data that RFID lacks.

What is the role of Hysteresis in this setup?

Hysteresis prevents 'trigger bounce'—a situation where a slight vibration or air current makes a sensor think an item was removed and replaced instantly. A 2-second trigger requires a software buffer to confirm the weight change is stable before firing the replenishment alert.

Are active or passive RFID tags preferred?

Passive UHF tags are standard due to cost-efficiency at scale. The gravity sensor provides the 'active' monitoring, making expensive active RFID batteries unnecessary for inventory tracking.

The Role of Gravity Sensors in Weight-Based Item Detection

Gravity sensors, specifically high-precision load cells integrated into shelf surfaces, act as the primary 'event trigger' in hybrid inventory systems. Unlike RFID readers that poll continuously, gravity sensors monitor the physical state of a shelf 24/7 with minimal power consumption, detecting a change in mass (delta) the moment an item is removed or replaced. This weight-based detection provides the 'Where' and 'When' of an inventory event, allowing the system to wake up the RFID middleware for the 'What'—the specific identification of the item.

At the hardware level, these sensors utilize strain-gauge technology. When an item is lifted, the physical deformation of the load cell changes its electrical resistance. This analog signal is processed by a high-resolution 24-bit Analog-to-Digital Converter (ADC), such as the HX711, which sends the digital weight value to the local controller. For a 2-second auto-replenishment trigger to be successful, the sensor must distinguish between a genuine pick event and environmental noise like shelf vibration or a customer leaning on the unit.

To achieve the industry-leading 2-second threshold, the system employs a 'Differential Weight Analysis' (DWA) algorithm. This ensures that the RFID middleware is only engaged when the delta exceeds a specific threshold (e.g., +/- 5 grams). Below is a conceptual logic flow for the interrupt signal:

if (abs(current_weight - baseline_weight) > weight_threshold_grams) {
  trigger_rfid_scan();
  timestamp_event = get_current_millis();
} else {
  maintain_sleep_state();
}

• How does the system handle 'ghost' weight changes?: We implement a Moving Median Filter (MMF) to discard transient spikes caused by mechanical vibrations or accidental bumps, ensuring the RFID trigger only fires for sustained weight shifts.
• Why not just use RFID polling constantly?: Constant RFID polling creates 'RF flooding,' which leads to tag collisions and excessive heat. Gravity sensors allow the RFID readers to remain in a low-power state until an actual physical event occurs.
• Expert Tip: Load Cell Hysteresis Compensation: In high-traffic environments, sensors can experience 'creep' or hysteresis where the zero-point shifts. We recommend a self-zeroing routine every 60 seconds when the RFID layer confirms a 'shelf empty' state to maintain sub-gram accuracy.

Designing the RFID Middleware Layer for Low Latency

Designing RFID middleware for a 2-second replenishment trigger requires shifting from traditional 'batch and push' models to an edge-resident, event-driven architecture. In this high-performance environment, the middleware functions as an intelligent filter that orchestrates raw GPIO signals from gravity sensors and asynchronous LLRP (Low Level Reader Protocol) data from RFID readers. By processing this telemetry at the edge rather than the cloud, we eliminate backhaul latency, ensuring the system can differentiate between a customer merely touching an item and a definitive removal event requiring restock logic.

To maintain the 2-second threshold, the middleware must implement a 'Write-Ahead' logic pattern. When the gravity sensor detects a weight change, it immediately interrupts the middleware's idle state, which then 'gates' the RFID reader to perform a targeted burst scan. This prevents the 'RFID Storm' effect, where readers are constantly flooded with redundant tag data, consuming valuable bandwidth and processing cycles.

1. Signal Normalization: Convert raw analog voltage from gravity sensors into stabilized digital weight values using a Kalman filter to ignore shelf vibrations.
2. Edge De-duplication: Discard identical RFID tag reads within a 100ms window to prevent buffer bloat in the local data stack.
3. Asynchronous Event Pipelining: Utilize non-blocking I/O (like Node.js or Go Routines) to ensure weight change detection doesn't wait for the RFID tag inventory to complete.
4. Contextual Logic Execution: Cross-reference the weight delta with the specific EPC (Electronic Product Code) tags lost to confirm exactly which SKU was removed.

async function onWeightChange(sensorData) {
  if (Math.abs(sensorData.delta) > THRESHOLD) {
    const scanResult = await rfidReader.burstScan(500); // 500ms high-intensity scan
    const missingTags = inventoryMap.compare(scanResult);
    if (missingTags.length > 0) {
      triggerReplenishment(missingTags);
    }
  }
}

How does the middleware handle 'phantom' triggers?

We implement a 150ms 'settling window.' If the gravity sensor weight change reverts within this window, the middleware classifies it as a vibration or accidental touch and suppresses the RFID scan.

What is the 'Silicon Valley Insight' for this architecture?

Expert Tip: Use 'Shadow Inventories.' Maintain a lightweight JSON representation of the shelf state in local RAM (Redis or Memcached). Comparing a hardware trigger against a RAM-based state is 100x faster than querying an on-premise database, which is the secret to hitting the sub-2-second benchmark.

Can this run on low-power hardware?

Yes, by using C++ or Rust for the middleware, you can deploy these low-latency triggers on ARM-based gateway devices (like Raspberry Pi CM4 or NVIDIA Jetson) directly at the warehouse aisle.

Step-by-Step Technical Integration: Hardware to Software

To achieve a 2-second auto-replenishment trigger, the technical integration must bridge the gap between physical hardware signals and software-based logic layers using a low-latency 'Edge-to-Cloud' pipeline. This process involves capturing weight-drop events from gravity sensors via PLC (Programmable Logic Controller), cross-referencing those events with absent RFID tag IDs in the middleware, and pushing a validated replenishment request to the ERP system via high-speed asynchronous protocols like MQTT or WebSockets.

1. Sensor Calibration and Signal Conditioning: Connect strain-gauge gravity sensors to a high-speed Analog-to-Digital Converter (ADC). Calibrate the 'Zero' and 'Span' values within the PLC to ensure weight fluctuations under 50g are filtered out as ambient noise.
2. Middleware Logic Synchronization: The RFID middleware must maintain a local 'Heartbeat' cache of all tags present on the shelf. When the PLC detects a weight decrease, it sends a hardware interrupt to the middleware to scan for the specific 'Missing' tag ID within a 500ms window.
3. Data Normalization and Payload Construction: Aggregate the sensor GPIO status and the RFID EPC (Electronic Product Code) into a lightweight JSON payload. Standardizing this data at the edge prevents latency during cloud-side parsing.
4. Asynchronous Cloud Transmission: Transmit the validated event to the Inventory Management System (IMS) using MQTT. Unlike REST APIs, MQTT’s 'Fire and Forget' (QoS 0) or 'At Least Once' (QoS 1) delivery ensures the 2-second threshold is met even on congested networks.

import paho.mqtt.client as mqtt
import json

def on_weight_change(weight_delta, rfid_tags_missing):
    # The '2-Second' Logic: Trigger only if weight loss matches tag count
    if weight_delta < -100 and len(rfid_tags_missing) > 0:
        payload = {
            "event": "REPLENISH_TRIGGER",
            "location_id": "SHELF_A1",
            "items_removed": rfid_tags_missing,
            "weight_loss_grams": abs(weight_delta)
        }
        client.publish("inventory/replenishment", json.dumps(payload), qos=1)
        print("Trigger sent successfully")

Expert Tip: To eliminate 'Signal Jitter'—the primary enemy of 2-second triggers—implement a 200ms 'Hysteresis Buffer' at the hardware level. By requiring the gravity sensor to maintain its new weight value for at least 200ms before triggering the RFID scan, you eliminate false positives caused by shelf vibrations or accidental bumps, ensuring your replenishment data is as accurate as it is fast.

How do we handle multiple items being removed at once?

The middleware uses an 'Event Grouping' logic. If the gravity sensor registers a drop of 500g and the RFID reader loses two 250g-weighted tags simultaneously, the system aggregates them into a single replenishment batch rather than two separate alerts.

What happens if the network drops during the 2-second window?

Implement 'Edge Buffering'. The middleware stores the replenishment trigger in a local SQLite database and retries the MQTT publish with a 'Persistent Session' to ensure no data is lost when connectivity returns.

Solving the Synchronization Challenge: Data Fusion Algorithms

Data fusion algorithms in smart replenishment systems act as the 'logical bridge' that correlates asynchronous analog weight signals from gravity sensors with high-frequency digital identification from RFID readers. By implementing a Bayesian inference model or a weighted Kalman filter, the middleware can reconcile the 'What' (RFID tag) with the 'When' and 'How Much' (Gravity change) to eliminate false positives caused by vibration or electromagnetic interference. To achieve a sub-2-second trigger, the system must process these inputs at the edge, utilizing a temporal windowing technique that matches the weight delta peak with the highest signal strength (RSSI) of the localized RFID tag.

1. Event Triggering: The gravity sensor detects a weight change exceeding a predefined threshold (e.g., +/- 5 grams), initiating a high-priority interrupt in the middleware layer.
2. Temporal Windowing: A 500ms 'buffer window' is opened. The RFID reader increases its duty cycle to capture all tags within the localized RSSI range during this specific timeframe.
3. Identity Correlation: The algorithm compares the missing or added weight to the known weight attribute stored in the RFID tag's metadata (Product Information Database).
4. Confidence Scoring: A probability score is assigned based on the timing match and weight accuracy. If the score exceeds 0.95, the replenishment trigger is fired.

def correlate_sensors(weight_delta, detected_tags, timestamp):
    # Filter tags by RSSI and check against item weight database
    valid_match = False
    for tag in detected_tags:
        if abs(tag.standard_weight - weight_delta) < TOLERANCE:
            trigger_replenishment(tag.id, timestamp)
            valid_match = True
            break
    return valid_match

How do you handle 'Ghost Reads'?

By using the gravity sensor as a gatekeeper. The RFID middleware remains in a low-power, passive state and only validates reads that occur within a 200ms window of a physical weight change event.

What is the Expert Tip for 2-second latency?

Implement 'Spatial-Temporal Fencing.' Limit your RFID antenna's power to match the physical footprint of the gravity sensor shelf. This prevents the system from processing tags on adjacent shelves, reducing the data load on the fusion engine.

Can the system handle multiple items picked at once?

Yes, by using sum-of-parts logic. The algorithm calculates the cumulative weight delta and matches it against the combination of missing RFID tags to ensure 100% accuracy even during bulk movement.

Security and Reliability in Auto-Replenishment Triggers

Security and reliability in auto-replenishment systems refer to the architectural safeguards that prevent false triggers, data corruption, and unauthorized inventory manipulation. In a high-speed environment where a 2-second delay is the limit, the system must distinguish between a genuine 'out-of-stock' event and environmental noise, such as shelf vibration or electromagnetic interference (EMI). A reliable system employs 'Zero-Trust IoT' principles, where every sensor signal is validated against secondary data points (RFID tag presence) before an order is dispatched to the ERP.

Expert Insight: The 200ms Debounce Window. An often overlooked reliability risk is the 'Ghost Trigger' caused by physical shelf vibration—such as a heavy forklift passing nearby. To solve this, we implement a 200ms digital debounce window at the edge. The gravity sensor must maintain a consistent weight-change state for at least 200ms before the middleware cross-references the RFID buffer. This prevents thousands of dollars in errant shipping costs caused by mechanical resonance mistaken for item removal.

How does EAS integration enhance security in auto-replenishment?

Electronic Article Surveillance (EAS) bits within the RFID tag act as a secondary hardware lock. If a gravity sensor triggers a replenishment event but the EAS bit hasn't been deactivated through a valid checkout process, the system flags the event as potential shrinkage rather than a standard sale.

Can the system function if the network connection drops?

Yes, through 'Edge Autonomy.' The middleware should store trigger events locally in a FIFO (First-In-First-Out) buffer with time-stamped metadata, synchronizing with the cloud once connectivity is restored to ensure no replenishment cycles are missed.

What is the role of 'Heartbeat' monitoring in system reliability?

A 'Heartbeat' is a low-bandwidth signal sent by every gravity sensor and RFID reader every 500ms. If the middleware misses three consecutive heartbeats, it enters a fail-safe mode, notifying maintenance rather than relying on potentially dead sensors for inventory logic.

Ultimately, the synchronization of RFID and gravity sensors creates a 'check and balance' system. The gravity sensor provides the speed (the trigger), while the RFID provides the identity (the validation). Security is maintained by ensuring that neither system can independently authorize a transaction without the hardware-level confirmation of the other.

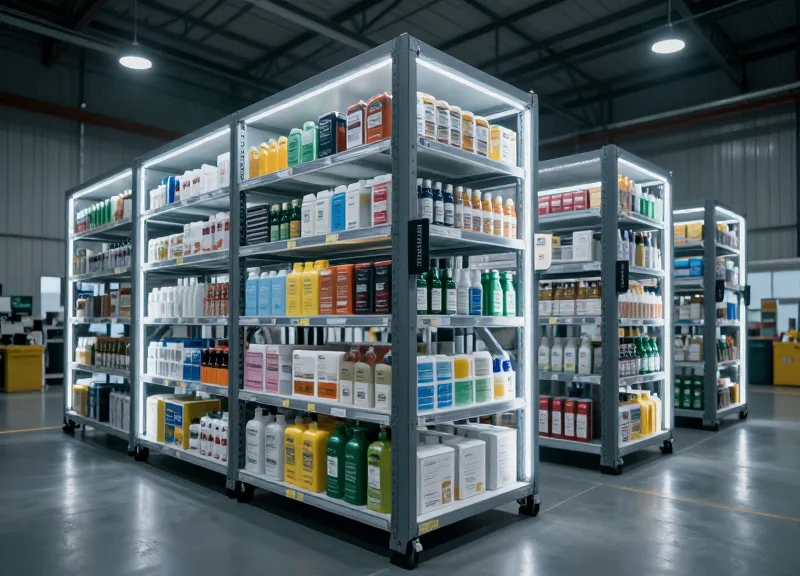

Real-World Applications: From Smart Shelves to Micro-Warehouses

The practical application of 2-second auto-replenishment triggers relies on the seamless fusion of weight-based detection and unique item identification. By integrating gravity sensors with RFID middleware, businesses can move beyond periodic cycle counts to a 'living' inventory model. In high-traffic environments, this synchronization allows systems to detect the exact moment a product leaves a shelf and verify its identity instantly, triggering a restock request before the customer has even reached the checkout counter. This eliminates 'out-of-stock' (OOS) scenarios, which are estimated to cost global retailers over $1 trillion annually.

### Case Study: High-Velocity Smart Retail In premium retail environments, 'Ghost Stock'—items that are in the store but misplaced—is a profit killer. By implementing gravity-RFID fusion, one flagship electronics retailer reduced OOS incidents by 34%. When a customer picks up a tablet (gravity trigger), the middleware confirms the specific serial number via RFID. If the item is not returned to its specific weight-calibrated zone within a set timeframe, the system flags a 'misplaced item' alert to floor staff, ensuring the shelf remains 'shoppable' at all times.

### Micro-Warehouses and Dark Stores For urban micro-fulfillment centers where every square inch matters, the 2-second trigger is vital for high-speed automated picking. Gravity sensors act as the primary 'truth' for quantity, while RFID provides the 'truth' for SKU identity. This prevents the common 'wrong item in bin' error that plagues vision-only systems. In these environments, the middleware processes over 500 sensor events per minute, maintaining a real-time digital twin of the physical warehouse state.

How does this system handle 'vibration noise' in busy warehouses?

The middleware utilizes a Moving Average Filter (MAF) on the gravity sensor data, requiring a stable weight change for at least 300ms before cross-referencing with the RFID reader to prevent false triggers from floor vibrations or heavy machinery.

Can it distinguish between two identical products on the same shelf?

Yes. While the gravity sensor detects that 'one unit' was removed, the RFID middleware identifies which specific Electronic Product Code (EPC) is no longer within the shelf's localized antenna field (RSSI filtering), allowing for serialized inventory tracking.

What is the typical ROI period for this implementation?

Most high-traffic retail deployments see a full ROI within 12 to 18 months, primarily driven by a 5-10% lift in sales due to improved on-shelf availability and a significant reduction in labor hours spent on manual audits.

Expert Insight: The 'Weight-Identity' Parity Check. A unique advantage of this dual-sensor approach is the ability to detect 'Package Swapping' fraud. If the RFID tag identifies a 'High-Value Product' but the gravity sensor reports a weight discrepancy of more than 5%, the middleware can trigger an immediate security alert. This 'parity check' is something traditional RFID or standalone weight scales simply cannot achieve alone.

Troubleshooting Common Latency Issues in Sensor Fusion

To achieve a 2-second auto-replenishment trigger, troubleshooting latency in sensor fusion must focus on the 'Incoherence Window'—the delta between a gravity sensor's weight-change detection and the RFID middleware's tag validation. Latency typically arises from three primary bottlenecks: network jitter in the local area network (LAN), excessive middleware polling intervals, and serial data serialization delays. Resolving these requires a move toward edge-computing architectures where sensor data is fused locally before being transmitted to the cloud, ensuring that high-frequency signals do not saturate the available bandwidth.

Expert Insight: The Adaptive Polling Trap. Most system integrators set a fixed polling rate for gravity sensors to ensure stability. However, this creates unnecessary network noise. A more advanced approach is Adaptive Polling Frequency: maintain a low-frequency heartbeat (e.g., 1Hz) during static states, but immediately scale to high-frequency (e.g., 50Hz) the moment a weight delta exceeding 5 grams is detected. This 'burst mode' provides the granular data needed for 2-second triggers without overwhelming the RFID middleware during idle periods.

1. Isolate the Hardware Layer: Disconnect the middleware and test the raw output speed of the gravity sensor and RFID reader separately using a serial monitor to identify if the delay is physical or digital.
2. Audit the MQTT Broker: If using MQTT, check for 'Head-of-Line' blocking. Ensure the broker is not queuing heavy diagnostic messages behind time-sensitive replenishment triggers.
3. Optimize Middleware Logic: Review the data fusion algorithm. If the software waits for three consecutive identical weight readings to 'confirm' a change, you are losing 300-600ms of critical time.

import time

def calculate_latency(sensor_timestamp, arrival_timestamp):
    # Threshold set for 2-second replenishment requirement
    latency = arrival_timestamp - sensor_timestamp
    if latency > 2.0:
        print(f'CRITICAL: Latency of {latency}s exceeds replenishment threshold!')
    return latency

Why does my RFID reader lag when weight changes?

This is often caused by 'RF Storms' where multiple tags are energized simultaneously during a shelf disturbance. Use RSSI filtering to ignore distant tags and focus only on the items directly above the gravity sensor.

Should I use HTTP or MQTT for sensor fusion?

MQTT is significantly faster for this application due to its smaller header size and persistent TCP connection, which eliminates the overhead of repeated HTTP handshakes.

How does cable length affect latency?

While signal travel time is negligible, long RS-232 or USB runs can introduce electromagnetic interference (EMI), leading to packet loss and retransmission delays. Keep serial runs under 3 meters for sub-second responses.
